6 Channel Kinetic Energy Smart Dry Contact Controller WiFi+RF433 (2×16, 4x10A) On/OFF
€91.00
The 6 channel receiving controller is suitable for connecting to Kinetic Energy wireless switches
It is only compatible with other Kinetic Energy devices.
The six channel controller is equipped with a pairing button for each channel for synchronization with the Kinetic Energy switch. Its grounding requires 230V (phase and zero) as well as the output to the consumer is phase and zero. The screw terminal block allows the connection of cable lines with a section of up to 2.5mm2.
You can easlly achieve two way or multi way control by syncronizing up to 10 Kinetic Energy keys.
For APP and/ or voice control please instal the Tuya/ Smart Life APP on your smartphone and follow the instruction from the user manual and app.
This model doesn’t have dimming function, if you want dimming function please chose the Kinetic Energy Dimming controller (ERC2203-W) whitch also has the app control.
Important: the controller remains in the off position after a power fall, in order to be activated it must be turned on from one of the corresponding Kinetic Energy switches.
FEATURES :
- Compatible with lamps like halogen, incandescent, CFL, fluorescent, LED.
- Once the switch is pressed, the built-in transmitter of the wireless switch send the command by RF 433MHz to the receiver to achieve on/off control.
- A receiver can pair with several switches to achive 1 or 2 way control, Multi-way control ( can be paired with a maximum of 10 Kinetic Energy keys/ channel )
- Wide applications for home, office, supermarket, hospital, factory, old building, hotel etc.
- Support for Din Rail
- Smart on/ off control from Tuya app.
- Voice control with Amazon Alexa and Google Assistant.
| Technical Parameters | |
|---|---|
| Power suply | AC100V ~ 240V 50/60Hz |
| Working Type | On/ Off |
| Operating current | 2*16A, 4*10A |
| Maximum output power | LED load: 4*500W + 2*2200(220V-) Resistive load: 4*1000W + 2*2200(220V-) |
| Working Frequency | RF 433MHz + WiFi 2.4GHz |
| WiFi Standard | WiFi 2.4 GHz IEEE 802.11 b/g/n |
| Operating Range | Up to 80m outdoors Up to 25m indoors (May vary depending on conditions) |
| Dimensions | L126*W80*H34mm |
| Working Temperature | -20 ~ +55°C |
| Memory capacity | Maximum 5 switches/ Channel |
| Dimming | No |
| Brand |
Kinetic Energy |
|---|---|
| Channels |
6 Channels |
| Function |
ON / OFF |
| Wireless Comunication |
RF 433MHz, WiFi 2.4GHz |
At KINETIC ENERGY, we are passionate about bringing intelligence to homes
As engineers and construction specialists, we offer comprehensive services including design, permits, consulting, execution, architecture, electrical installations, and more in collaboration with our partner companies. Our expertise allows us to provide smart accessories for existing homes or design and build from scratch, ensuring quality and adhering to client timelines and budgets.
In 2017, we discovered the revolutionary technology of kinetic switches and were initially skeptical. However, after extensive testing and zero real problems, we integrated them into our projects. Impressed by their performance and reliability, we expanded our market to sell these amazing smart switches throughout Europe.
Our team of experts handpicks only the best and most reliable kinetic switches for our customers, ensuring high quality and customer satisfaction.
Join us at Kinetic Energy to experience the wonders of kinetic switch technology for a truly intelligent and convenient home.
YOU MAY ALSO LIKE…

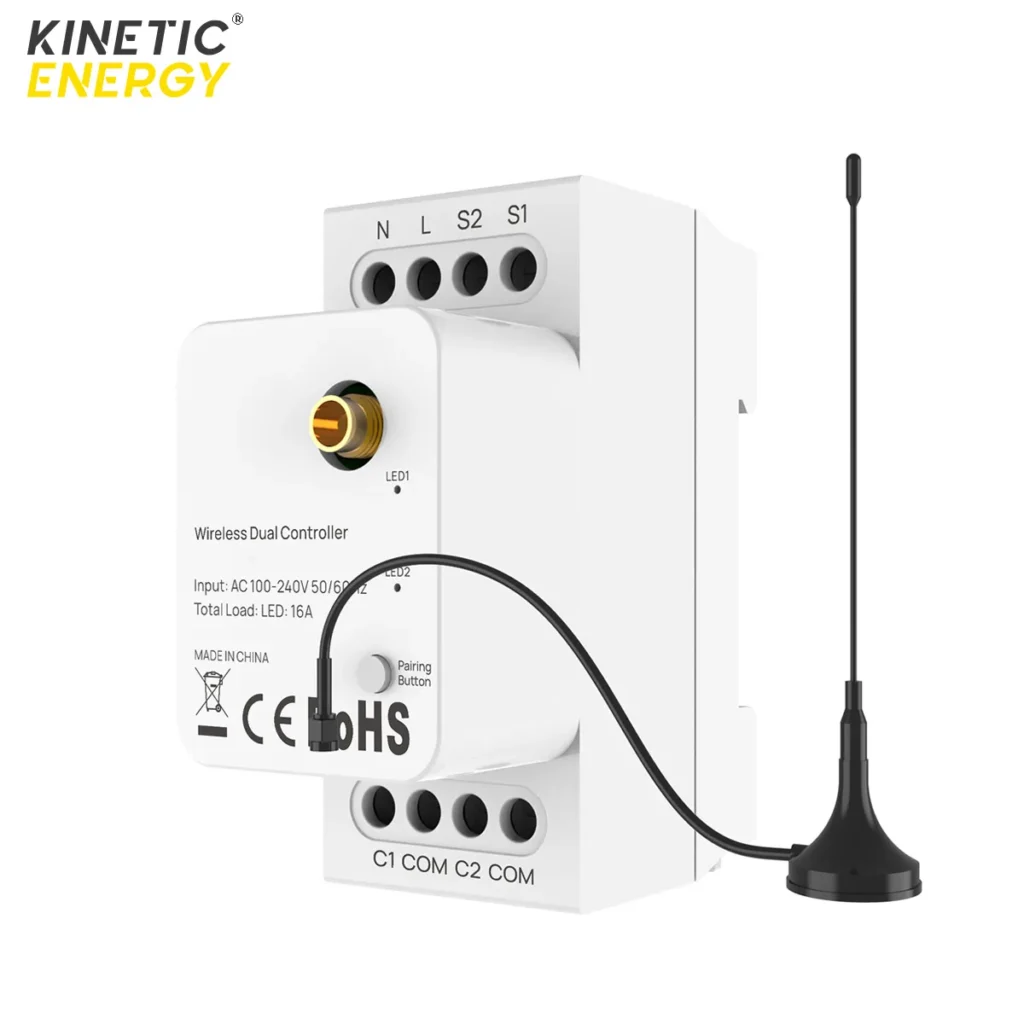

2 Channel Kinetic Energy Smart Controller WiFi+RF433 2x10A On/OFF for DIN Rail
